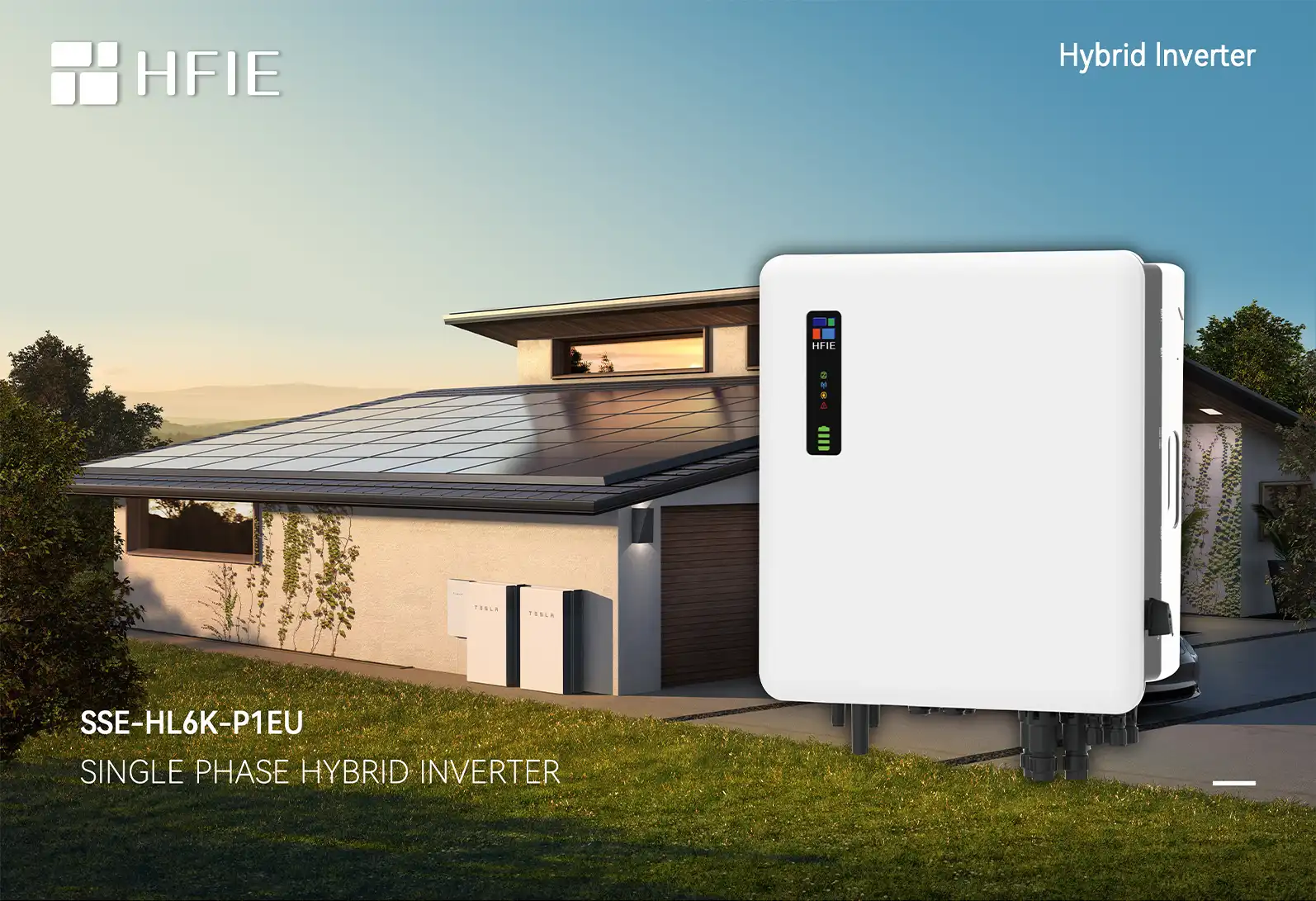

3kW~8kW Single-Phase Low Voltage Hybrid Inverter

10-Year warranty，IP65，3-8kw single Phase Low Voltage Residential Energy storage Inverter

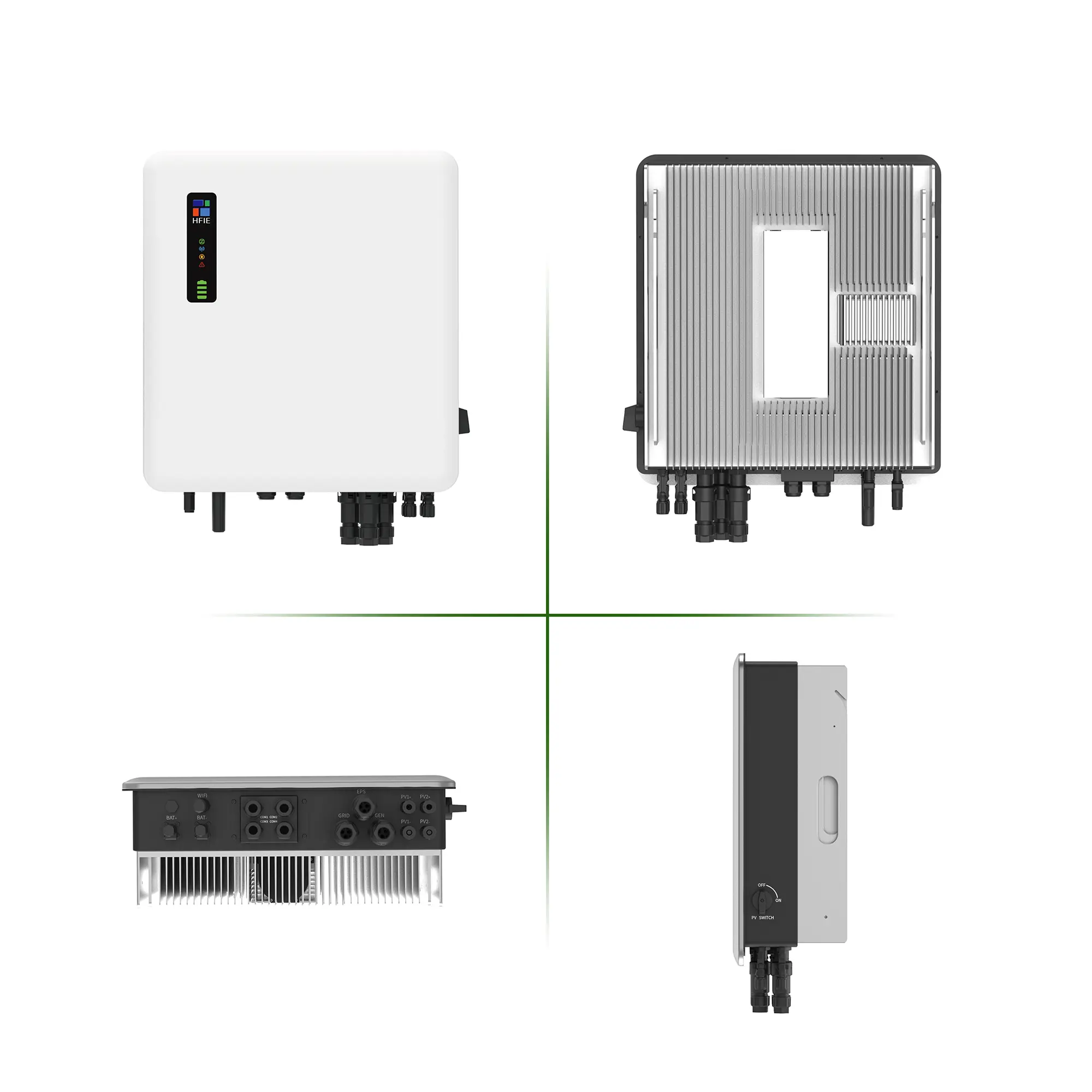

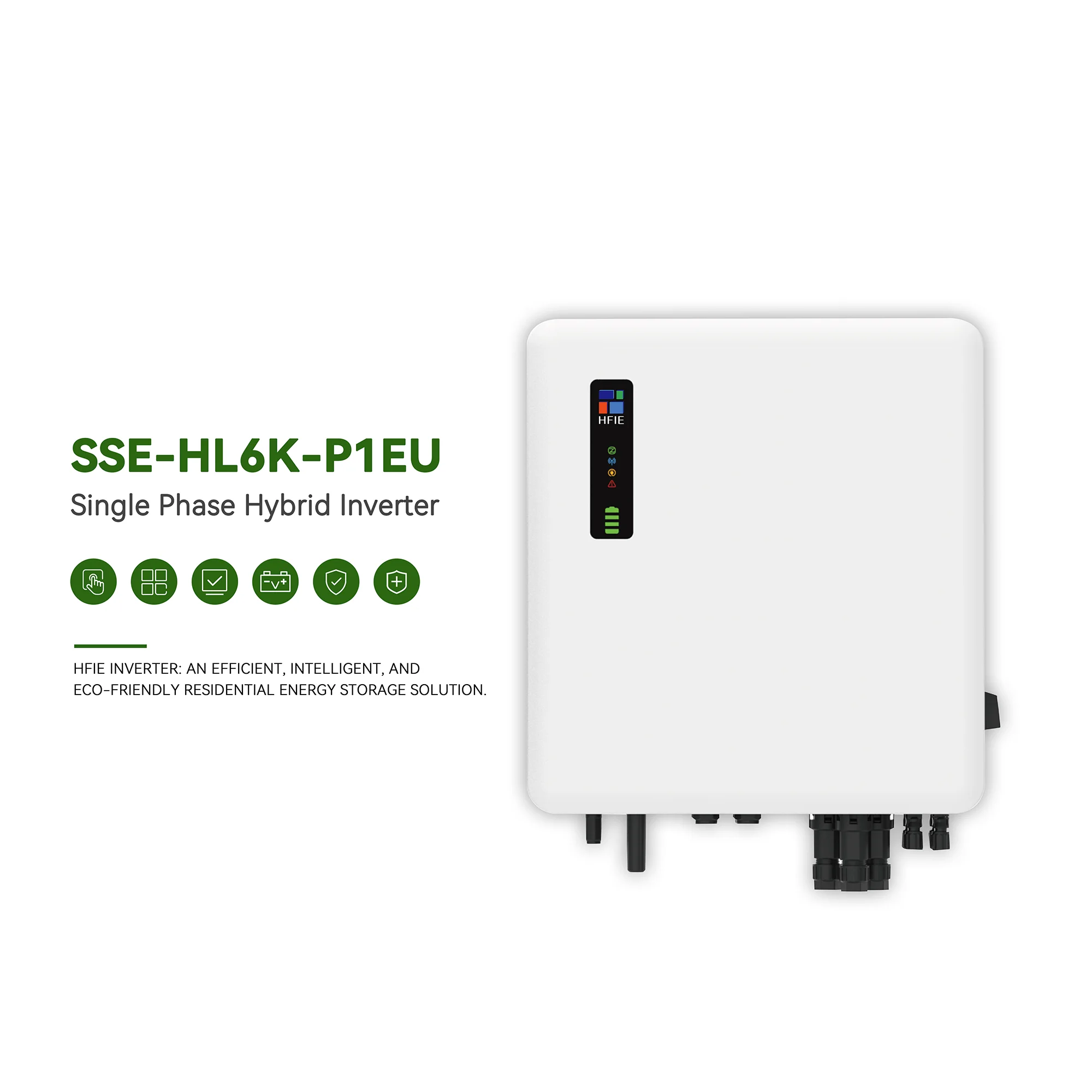

SSE-HL3K~8K-P1EU single-phase low voltage hybrid inverter is designed for residential PV plants. The maximum operating PV input is 16A, equipped with 2 MPPT trackers. IP65 protection degree. 10-Year warranty. Easy installation.

• High MPPT efficiency of up to 99.9% for optimal performance.

• Dual MPPT trackers for a maximum of 9kW solar input.

• Fast switch time (<10ms) ensures seamless power.

• Wide MPPT voltage range: 120V-500V d.c.

• Supports 45V-58V lithium and lead-acid batteries.

• Integrated AC/DC breakers for safe, easy installation.

Minimum order quantity: 1 pcs .

share:

Inquire Now
  TECHNICAL SPECIFICATION
  ModelSSE-HL3K-PIEU  SSE-HL3K6-PEUSSE-HL4K-PIEUSSE-HL4K6-PIEUSSE-HL5K-PIEUSSE-HL6K-PIEUSSE-HL7K-PIEU SSE-HL8K-PIEU
  INVERTER INPUT/OUTPUT (GRID)
  Rated Power3 kW3.6 kW4 kW4.6 kW5 kW6 kW7kW8 kw
  Rated Voltage220 / 230 / 240 V a.c., L+N+PE
  Rated Frequency50 Hz / 60 Hz
  Power Factor Range0.8 leading ~ 0.8 lagging
  Switch Time＜10 ms
  Current (Maximum Continuous)13 A a.c.15.6 A a.c.17.4 A a.c.20.0 A a.c.21.7 A a.c.26.1 A a.c.30.4 A a.c.34.7 A a.c.
  Max Output Overcurrent Protection250 V a.c. / 63 A a.c.
  BATTERY
  Battery TypeLithium / Lead-acid
  Battery Voltage Range45 ~ 58 V d.c.
  Rated Battery Voltage51.2 V d.c.
  Max Charge Current78 A d.c.91 A d.c.104 A d.c.117 A d.c.130 A d.c.143 A d.c.156 A d.c.195 A d.c.
  Max Discharge Current78 A d.c.91 A d.c.104 A d.c.117 A d.c.130 A d.c.143 A d.c.156 A d.c.195 A d.c.
  Reverse Connect ProtectionYes
  PV INPUT
  No. of MPPT Tracker/Strings2 / 1+1
  Max. PV Array Power4.5 kW5.4 kW6.0 kW6.9 kW7.5 kW9.0 kW10.5 kW12.0 kW
  Max DC Voltage550 V d.c.
  MPPT Voltage Range120 ~ 500 V d.c.
  Start-up Voltage120 V d.c.
  Max. Input Current16 + 16 A d.c. (8 kW : 18 + 18 A d.c.)
  Isc PV (Absolute Maximum)24 + 24 A d.c.
  AC OUTPUT (EPS)
  EPS Rated Output Voltage220 / 230 / 240 V a.c., L+N+PE
  EPS Rated Output Frequency50 Hz / 60 Hz
  EPS Rated Output Active Power3 kW3.6 kW4 kW4.6 kW5 kW6 kW7 kW8 kW
  EPS Rated Output Apparent Power3 kVA3.6 kVA4 kVA4.6 kVA5 kVA6 kVA7 kVA8 kVA
  EPS Rated Output Current13 A a.c.15.6 A a.c.17.4 A a.c.20.0 A a.c.21.7 A a.c.26.1 A a.c.30.4 A a.c.34.7 A a.c.
  Overload Capacity (Off Grid)120% 60s / 150% 30s / 200% 10s
  EFFICIENCY
  MPPT Efficiency99.90%
  Euro-efficiency97.00%
  Max. Efficiency97.80%
  PROTECTION & FEATURE
  Insulation MonitoringYes
  Residual Current MonitoringYes
  Parallel FunctionYes
  Protection DegreeIP65
  CertificationsCE10-21,EN 50549-1,VDE-AR-N 4105,UNE 217002,NTSTYPEA,G99,AS/NZS 47772
  Other ProtectionOverload, Over temperature, Short circuit , Active anti-islanding method
  GENERAL PARAMETER
  Storage Temperature-25°C ~ +60°C
  Operating Temperature-2℃ ~ +60℃ (Linely derating to 80% when exceed +45℃ ~ +60℃)
  Humidity0-100% (Non-condensing)
  Altitude2000 m (>2000 m Derating)
  Noise<35 dB

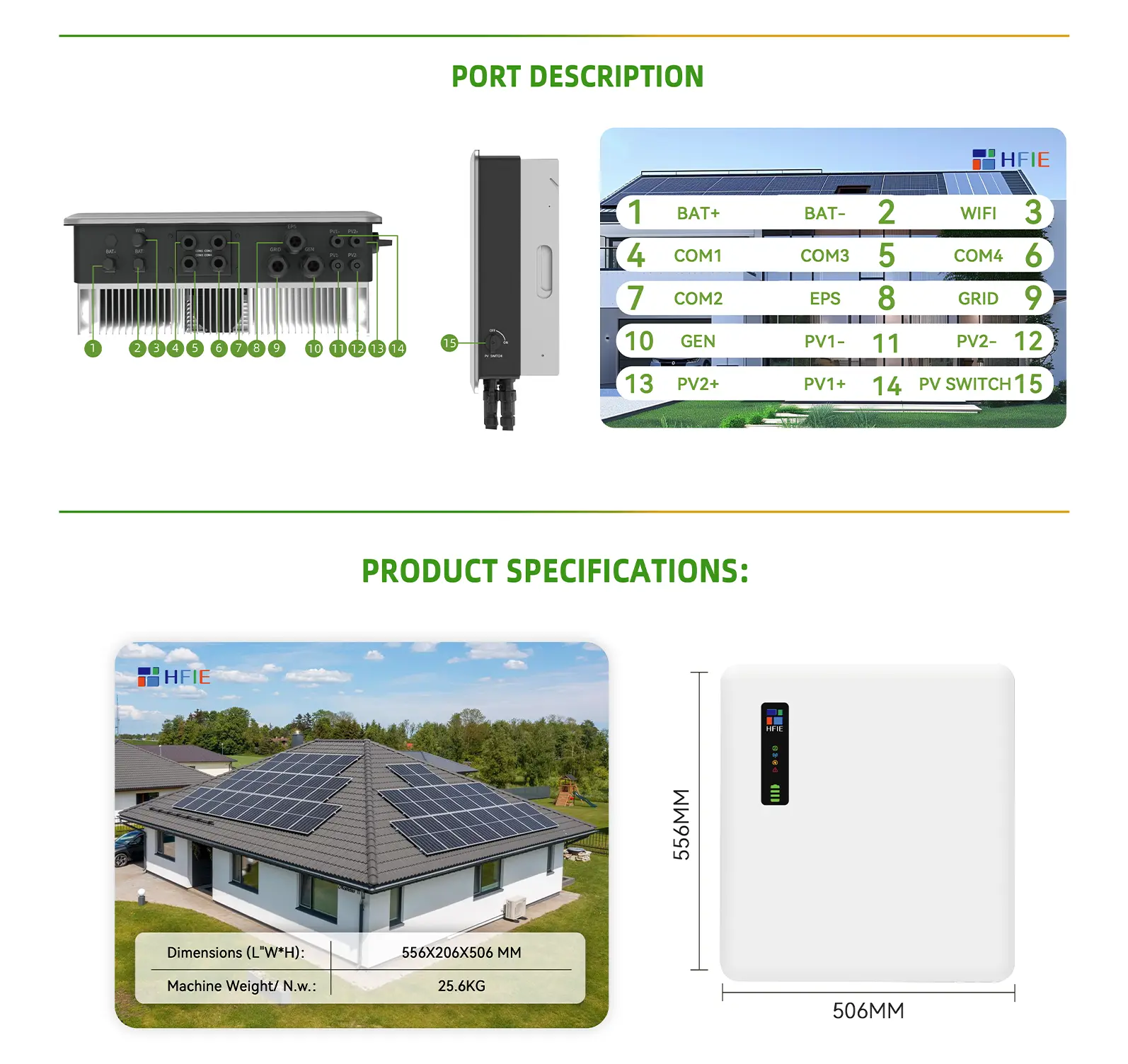

  Machine Dimension(W*H*D)506*556*206 mm
  Machine Weight / N.W.25.6 kg
  DISPLAY & COMMUNICATION
  DisplayLED + APP
  InterfaceCAN / RS485 / Bluetooth / WiFi / 4G / DRM (Optional)

Solar Inverter modules have been certified by UL, TUV, CE, IEC, CEC, MCS, etc.

  • 3-8kW single-phase low-voltage hybrid inverter | Home solar energy storage solution | High-efficiency grid-connected/off-grid inverter

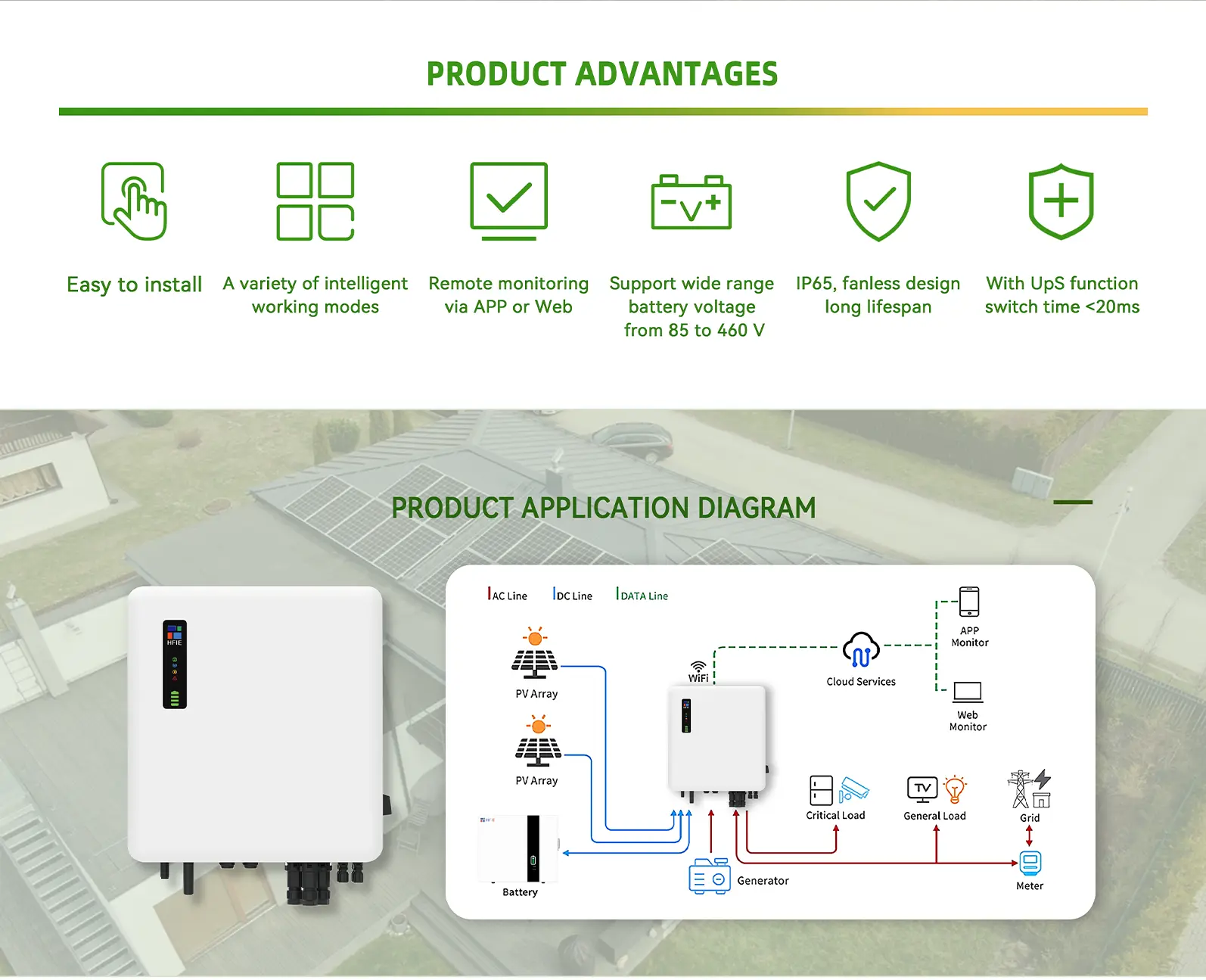

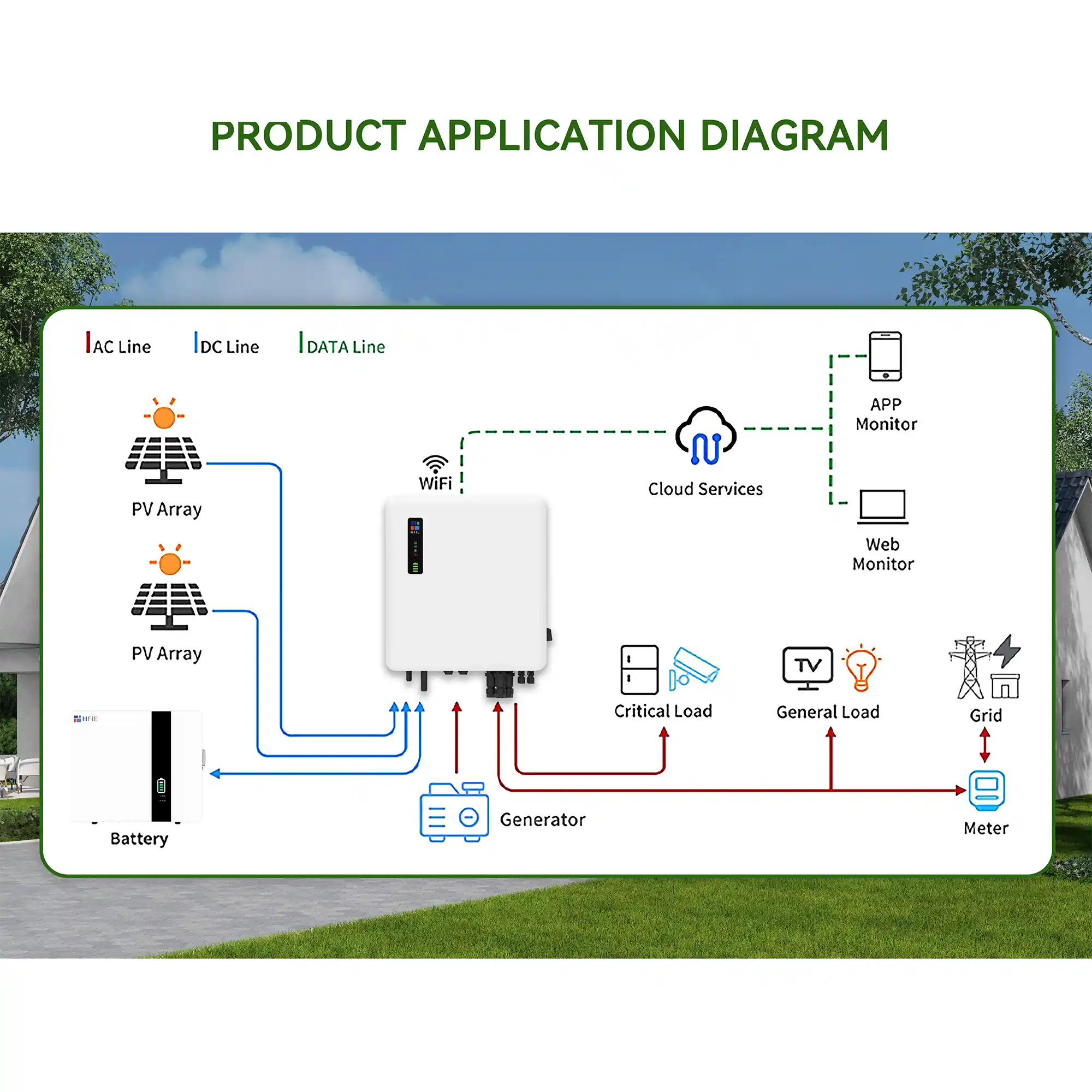

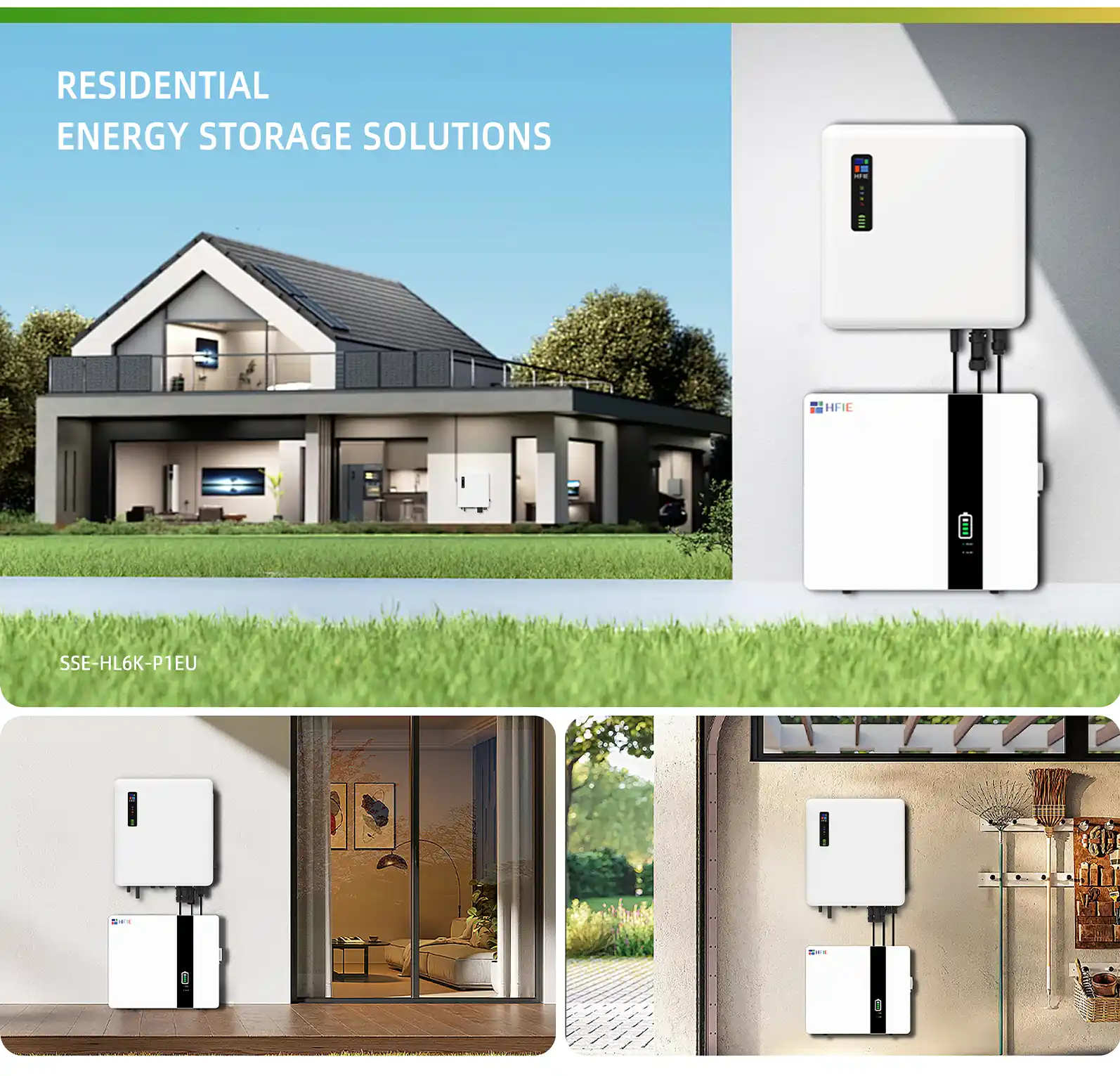

    The 3kW ~ 8kW single-phase low-voltage hybrid inverter is designed for residential energy storage, providing excellent performance and reliability. It supports grid-connected and off-grid operation modes, and can automatically switch to off-grid mode in the event of a power failure to ensure continuous power supply. The use of low-voltage 48V battery system ensures higher battery compatibility and safety. With advanced MPPT technology, solar energy utilization is maximized, and system capacity can be expanded in parallel to meet the growing electricity demand of households. The inverter also has IP65 protection rating, suitable for outdoor installation, and provides efficient heat dissipation and dust and water resistance.

  • 3kW ~ 8kW low-voltage hybrid inverter | single-phase home energy storage inverter | smart photovoltaic grid-connected and off-grid support

    Discover the SSE-HL3K~8K-P1EU versatile home energy solution, equipped with dual MPPT trackers, a broad input voltage range (45V-58V), and an impressive efficiency of up to 99.9%. Integrated AC/DC breakers and rapid current monitoring guarantee safe and straightforward installation. The intuitive app provides seamless on/off-grid capabilities and remote monitoring, making energy management effortless.

  • Q
    What are your main products?
    A

    We mainly manufacture solar systems, solar panels, inverters, controllers, batteries and mounting systems and all related solar accessories

  • Q
    Are you a factory or a trading company?
    A

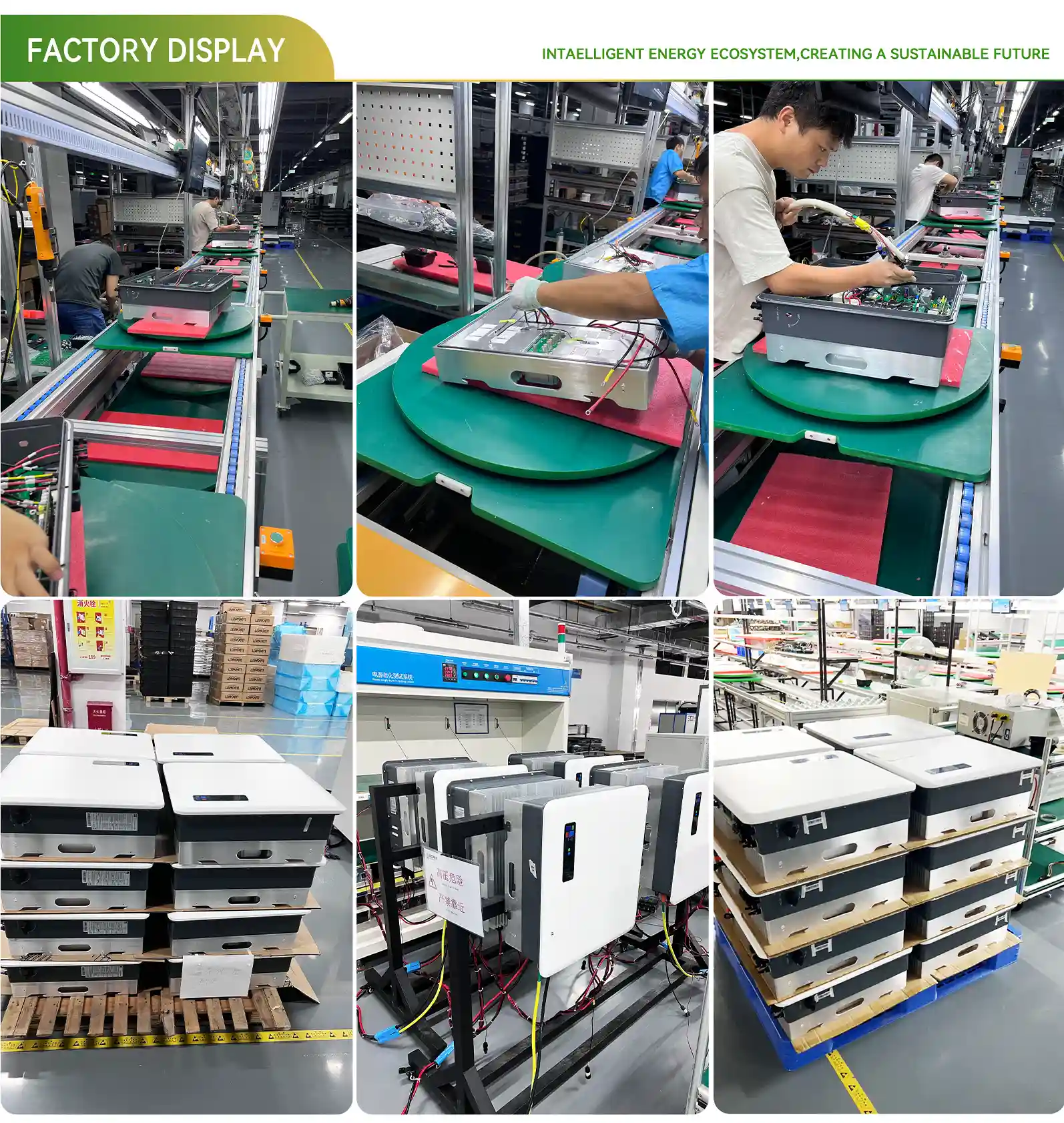

    We are a factory with more than ten years of experience in the production of solar energy series products. You are welcome to visit our factory.
